CE200 Series Construction Elevator Inverter For Both Passenger And Cargo
Overview
Technical Information

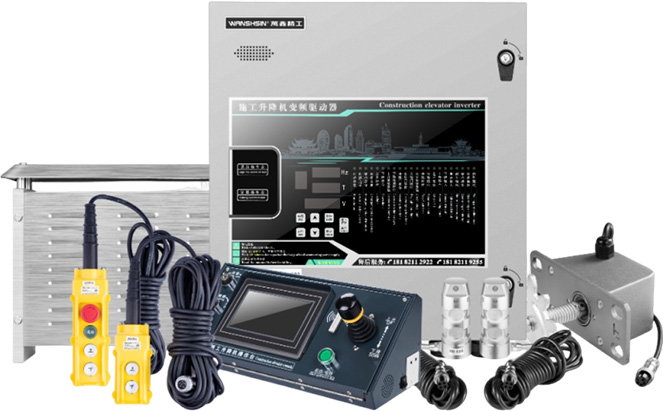

The CE200 series variable frequency drive is a special model developed for the electronic control of construction hoists. The system integrates functions such as inverter, brake unit, logic control unit, brake control unit and lifting weight limiter. It can be installed in three ways: wall-mounted, semi-embedded and fully embedded. It has the advantages of comprehensive functions, stable performance, exquisite appearance, easy installation and maintenance, etc., providing customers with a set of high-performance and complete solutions.
Features

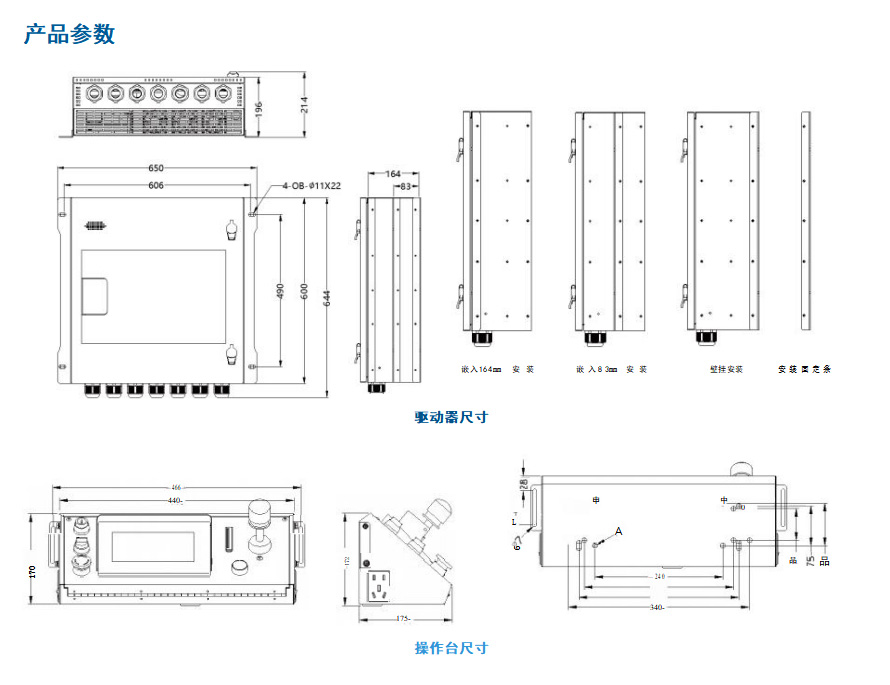

Parameters
Directory
Product Features

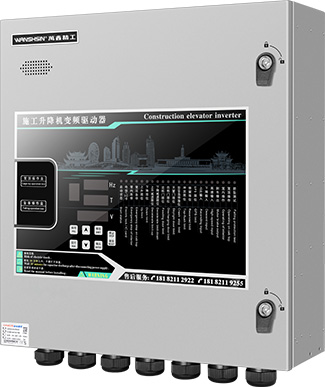

Rich door panel display
The operating frequency and load information are displayed in real time on the door panel, and all limit, handle input and brake output status have separate indicator lights.
Brake coil short-circuit protection function
Real-time monitoring of the brake coil current value, immediate cut-off of input in abnormal conditions, and protection of the brake coil and internal components.
Rich voice functions
The voice broadcast content is rich, and common faults have separate voice prompts. Combined with the display information of the door panel, the efficiency of on-site fault diagnosis is greatly improved.
Multiple installation methods
Three installation methods can be used: wall-mounted, semi-embedded and fully embedded.

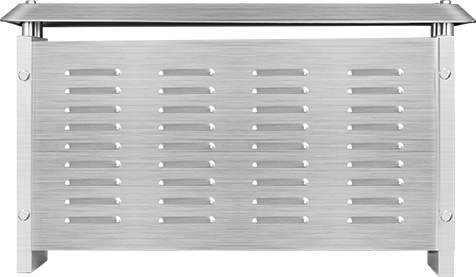

Braking resistor short-circuit protection
The built-in brake unit has a brake resistor short-circuit protection function.
Pre-authorization function
The system has a built-in perpetual calendar clock, which can set 3 equipment authorization times. Independent passwords can be set for all 3 times, which is convenient for users to manage the equipment in installments.
Dedicated brake control logic
Through the release current, release frequency, release delay time, etc., a dedicated brake control logic is realized to ensure safe and reliable operation of the elevator.

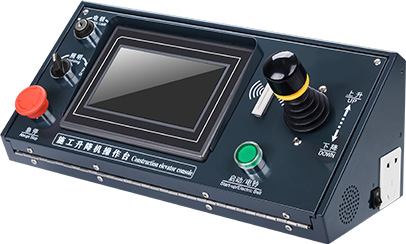

Human-machine interface function
The interface display is optimized and upgraded, using pictures instead of text descriptions, and adding a fault record function. The automatic leveling function of the interface reduces the workload of the operator, and automatically moves to the correct position after entering the floor, with accurate leveling position (≤5mm).
